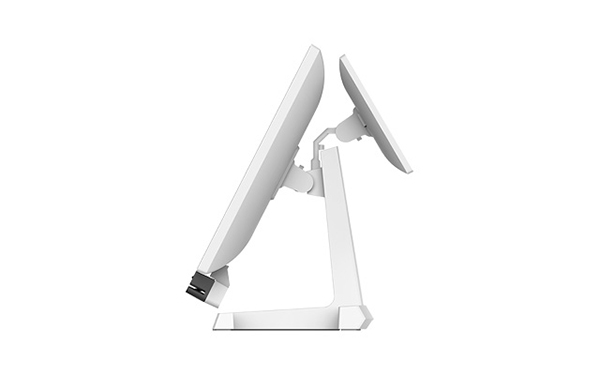

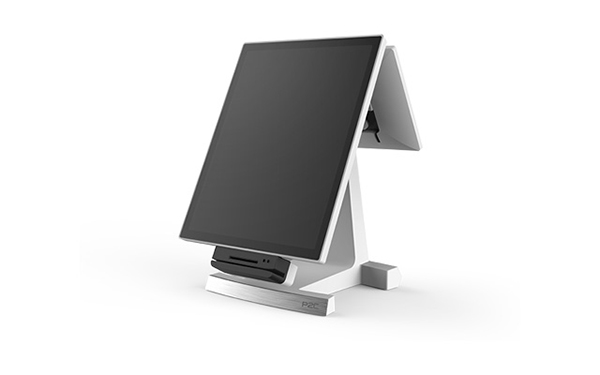

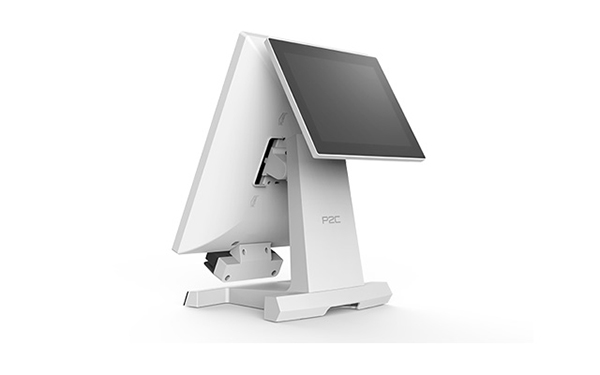

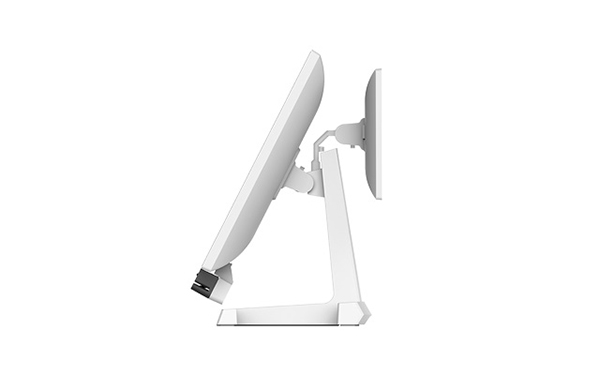

15" KIPOS E-200K

1대의 장비로 포스기와 키오스크를 동시에 사용

  • ㆍ 키오스크 + 포스 하이브리드형 시스템

  • ㆍ 다양한 입출력 포트 모니터 3대 연결 지원

  • ㆍ 모듈형 구조로 분해/조립 용이 A/S 시간 및 비용 절감

  • ㆍ 유리(Glass) 터치 패널

  • ㆍ 제품 안정성 강화 슈퍼 방열 프레임 설계

  • ㆍ 안전한 전원 공급 장치 체결 구조

  • ㆍ SSD 슬라이딩 구조 설계

  • ㆍ 쉬운 옵션기기 설치 듀얼모니터 자동결합 구조


System Processor Intel® Celeron® Quad-core Processor J6412 2.0GHz/2.6GHz
Chipset / BIOS Intel® Elkhart Lake SoC / AMI
Storage 2.5" SATA III SSD 128GB (SSD 256/512GB, optional)
Memory 4GB SO-DIMM, DDR4 2666MHz~3200MHz x 1 (Max 32GB, optional)
Graphics Intel® UHD Graphics for 10th Gen Intel® Processors
Multi Monitor 3 (# of Displays Supported) - up to 3 monitors (optional)
OS Windows 10 IoT Enterprise 64bit, Windows 11 64bit
Display Primary Display Type 15" LED Backlight (768 x 1024 Resolution)
Touch PCAP 10 Point Multi-touch
I/O Interfaces USB 2 x USB 2.0 (Rear Top x 2), 4 x USB 3.0(Rear Bottom x 4), 1 x USB 2.0 (RJ11)
Serial 6 (DB9 x 3, RJ50 x 2, RJ11 x 1)
COM1, 3, 5: DB9(+5V on pin #9, selectable by BIOS)
COM2, 4 (RJ50, RJ45): Support +5V and 12V for Special Devices and can be used for Kitchen Printer
COM6(RJ11): USB 2.0 and RS232 with +5V/1A for Card Reader
Audio 1 x Audio-out / 3.5mm
Secondary Display 1 x DisplayPort (included 1 x USB 2.0 / Power Delivery +12V) *Can be used for HDMI and Standard DVI, VGA monitor by passive cable.
LAN 1 x RJ45 (Base-T 10/100/1000 Ethernet)
Speaker (optional) 3W x 1
Peripheral Options Secondary Display LCD Type: 9.7" or 15" LCD (USB Port x 1)
Touch Monitor: 9.7" or 15" LCD with Capacitive Touch (USB Port x 1) - by single cable(no power & USB cable)
Standard Monitor: supported standard DP, HDMI, DVI, VGA monitor by change monitor cable
Standard and Powered DP MST Hub: supported standard or powered(customized) DP MST Hub.
Customer Display (CDP) FSTN LCD Type (20 columns x 2 lines)
Card Reader (MSR / SCR) Smart Card Reader: ISO/IEC7816 EMV Level 1 / Magnetic Stripe Reader: ISO 7811 ID-1 All tracks *Interface: USB(HID) and RS232C(COM6)
Physical Dimension Dimension (W x D x H) 242 x 237 x 430 (mm)
Weight 5.0 kg
Box Dimension Dimension (W x D x H) 450 x 410 x 280 (mm)
Weight 7.1 kg
Environment Power Supply DC 12V/5A (AC 100V~240V, 60W)
Temperature Operating Temp: 0 ~ 40℃ / Storage Temp : -20~60℃ / Humidity: 10% to 90%
Certifications CE, FCC, KC
